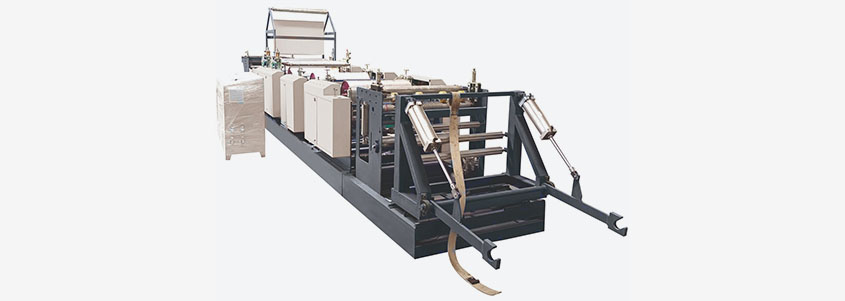

Roll to Roll Printing Machine Without Change Cylinder
Technical Specifications
General Parameter
- Electrical Control: Electric Control through servo motors & inventors along with Touch Screen
- Operational Requirement: Power Supply 440 Volts, 3 Phase + neutral
- Air Compressor: 5HP with 20 CFM Air Dryer
Printing Unit
-
- Each Printing unit mainly consists of 2 Nos. Reversible Station
- Minimum cylinder repeat size: 4″ / 100mm
- Cylinder repeat size: 1180 mm each station
- 1. No. of impression roller dully balanced, grinded and hard chrome plated
- 1. No. Rubber roller duly balanced
- 1. No. Anilox roller duly balanced functioning of machine shaft winding system
Applications
- PP / HDPE Bags Laminated and Unlaminated Fabrics
- One Side Pre-Printed BOPP Bags
- Fertilizer Bags
- Cement / Sugar Bags
Features
- This machine is applied for solvent- based ink and direct printing method for PP woven bag with / without lamination, available for CMYK colour combination to obtain realistic printing quality enhance packing valve.
- With web guiding device to control edge position
- Fully digitalized control setting on friendly human machine interface (HMI)
- Full body cover
- Machine power on and off controlled by HMI
- Double side dried by automatic constant temperature oven.
- Automatic feeding
- One time printing on two sides, accurate colour registration.
- PLC centralized control touch screen to set bag length.
- Colour mark tracking is suitable for reserve printing printed woven bags
- Start up with smook ink automatically
- Press printing without automatic clutch, no defective products when machine turn on or shutdown
- Frequency conversion control unwinding and unwinding part.
- Machine power on or and off is controlled by remote-control Unit
