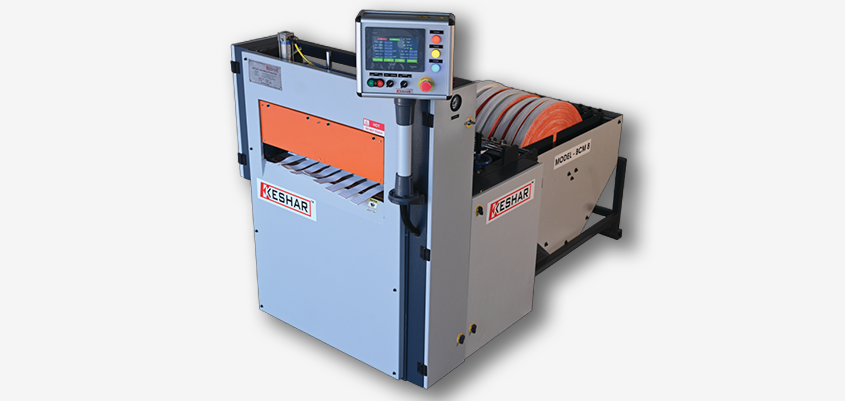

This is a very efficient machine to automatically cut and mark big quantities of belt. It is very easy to operate; you just need to place the webbing on the machine, insert the desired cut length, and adjust the marking points and press the start button. The cutting and marking process can be done automatically.
The machine with the PLC gives you the advantage so that, distance between 2 marks more than 100cm and distance between the edges to the first mark smaller than 25cm.
Our Webbing Cutting machine addresses the need for accurate and efficient cutting of the webbing used for lifting loops in FIBC's. In these machines, the cutting and marking is done automatically through a PLC controlled system. An automatic counting feature eliminates waste by cutting the exact quantity required.
| SR.NO | ITEMS | SPECIFICATION |
|---|---|---|
| 01 | Length | 226cm |
| 02 | Width | 130cm |
| 03 | Height | 147cm |
| 04 | Motor | 1.5kw Servo motor with set of Cable (Schneider/Fuji Make) |
| 05 | Machine Controls | PLC Complete Programmed |
| 06 | Cutting type | Hot Cutting Die with 3000 Watt Heater |
| 07 | Power Consumption (Total) | 4.5Kw, 415V, 3 Phase, 50Hz (6 HP) |
| 08 | Max. Belt Cut Length | 50 Meters |
| 09 | Operating Panel | Main Panel With 7" HMI Operating |
| 10 | Number of Belt | 35mm to 50mm width Belt 8 to 10 Nos., 75mm width Belt 6 Nos. and 100mm to 120mm width Belt 4 Nos. at a time with marking to be cut |
| 11 | Electrical Panel Main | Servo Drive, PLC and Set of Switch Gear - Schneider Make/Fuji Make |
| 12 | Air Pressure | 7 to 8 Bar |
| 13 | marking System | Single Marking (Dot Mark) |
| 14 | Man Power | One Worker |
| 15 | Belt width range | 35-120mm |
| 16 | Marking, min. Length from cutter | 250mm |
| 17 | Maximum number of marking | 6 no. Standard upto 30 marking optional |
| 18 | Maximum diameters of belt roll | 1000mm |
| 19 | Belt Cutting Length | 200 - 50,000mm |
| 20 | Production Speed (1 mtr Length) | 10* cuts/min (100 mtr/min) |
| 21 | Cutting Accuracy | +/- 10mm |
| 22 | Machine Weight | 610 Kg. Approx |
