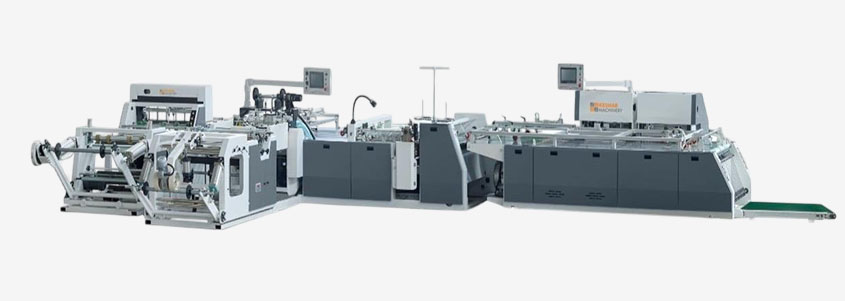

Auto Bag Cutting Stiching With Liner Inserting With Hemming System
- Electrical Parts : The use of highly sophisticated imported electrical control system ensures supporting high degree of automation, lower breakdowns
& very minimal maintenance over a period of usage.
- The Unwinding part : The unwinding unit comprises of Pneumatic Coil with electric deviation.
- Color code tracking : Color tracking using imported color mark sensor very much suitable for woven bags post continuous printing.
- Cutting parts : The hot cutting knife is adopted, the double mouth open device, the cold knife uses servo motor to control the cold knife.
- Feeding bag length control : The servo length control makes the cutting more accurate.
- Turning part : This machine adapts servo motor to control whole of mechanical device which inturn prevents any deviation of sewing when the bag gets turned
to ensure the bag dimensions most accurate
- Inserting film bag part : The use of servo motor to control film feeding length, so that more accurate cutting, hot sealing and inserting film once time done.
- Sewing Part : Adopt industrial sewing machine with high efficiency
- User film with woven bag mouth alignment : Use of Vacuum suction cup automatically align the inner membrane with the outer bag and complete thorough thermal welding.
- Folding Part : Use of Stainless steel wire to automatically fold the bag mouth, through servo accurate control and then through hot joint welding making the joints effective
and perfect.
- Whole machine control : The whole machine uniform speed unwinding, cutting film feeding, film inserting, transformation sewing all by a key start.
Operation adjustment and specification replacement are simple and convenient.
Technical Specification
Hemming Technical Specification
*The Production capacity depends on the quality of the fabric roll, the final product specification and the operator’s proficiency
Types of Application
Works in Machine
- BCS Machine
- BCS liner Inserting Machine
- BCS with Hemming Machine
- BCS Liner Inserting with Hemming Machine
