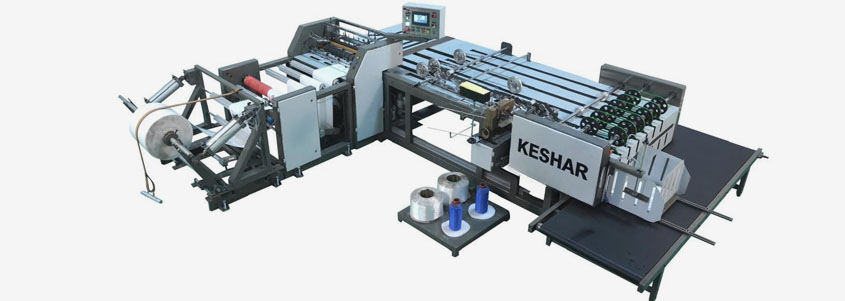

Auto Bag Cutting Stiching Machine (BCS)

Main Features

Suitable for PP / HDPE / BOPP Woven Sack Bag
Equipped with Bag Mouth Web Guide System
Pneumatic Lifting at unwinder to Lift Roll of 350 KG
Printing mark reading sensor
Cold cutter for laminated fabric for servo basis
Single and double folding device
PLC based electrical control panel with touch screen

Optional Devices

Zig – Zag Heat Cutter
Online Centre / Twist Gusset
Online C & D Punch
Online Cold Perforation Station and Hitting
Crape Tape Attachment
Air Compressor 5 Hp
Thread: Multifilament 1000 Denier

General	Technical Specification
Model	BCS
Diameter of unwinding cloth	1300 mm maximum applicable
Width of Unwinding Cloth	12-32 Inch adjustable
Cutting Length	19-55 Inch adjustable
Production Output	32-40 Bag /Min depend upon Bag Size
Print Mark Sensor	Precise cutting of Printed Roll
Length Accuracy	+/- 1 mm
Folding Device	Single Folder Attachment
Sewing Unit	2800 RPM, 1 HP
Hot Cutting (Un Laminated / Leno Bag)	High Quality alloy Steel Cutter with Tubular Heater
Cold Cutting (Laminated / BOPP Bag)	High Speed Servo Motor Basis
Connected Load	15 HP
Dimension	20 x 17 x 5 Feet
Machine Net Weight	2700 Kg

Cutting Unit

Driven Motor	2 KW Servo Motor
Feeding Speed	Synchronized with production Settings
Bag Mouth Auto Opening	Accurate Bag mouth opening through reversing grip shaft
90' Transfer	Clipper Device for well gripping

Folding, Stitching Unit

Stitching Unit (Double Needle)	High Speed Stitching Machine (Can be customized)
Stitching Range	11-14 mm
Distance Between Two Needles	8.5 mm
Folding Device	Single Fold & Double Fold
Folding Width	20 to 25 mm Adjustable
Sewing Unit	As Per Customer Requirement

Customize Size are as per Customer's requirement
