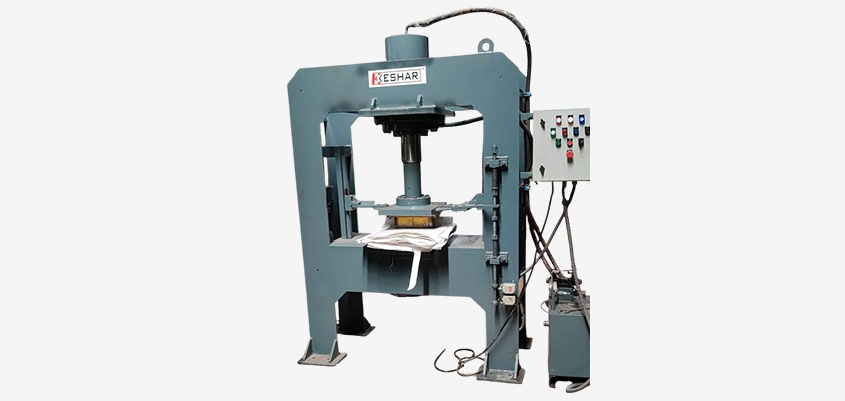

| Baffle Punching Machine | |
| Item | FIBC Fabric Baffle Punching Machine |
| Model | Bpm 30 |
| Cutting Type | Hydraulic Cold Punching |
| Capacity | 30 Ton |
| Technical Specifaction | |
| Length | 1600mm |
| Width | 1150mm |
| Height | 2800mm |
| Working Space (L X W) | 1100 X 850 mm |
| Hydraulic Cylinder | 90mm Bore, 300mm Stroke - 2 Cylindres. |
| Power Pack | 5.0 Hp A/C Motor & 250 Liters Oil Tank (Oil At Your Scope) |
| Max Working Pressure | 90-100 Kg/Cm2 |
| Power Pack - Valve | Yuken Make |
| Cutting Die | Cold Baffle Punch, 300mm X 100mm X 80mm - 3die Type. |
| Eletrical Power Required | 440v, 3ph, 50hz |
| Operating Panel | Semi Automatic |
| Hydraulic Oil | Oil Grade - 68no. Hydraulic (At Your Scope) |
| Machine Body | M.S Plate 16 Mm Structure, Ms Channel, Panel And Limit Switch. |
