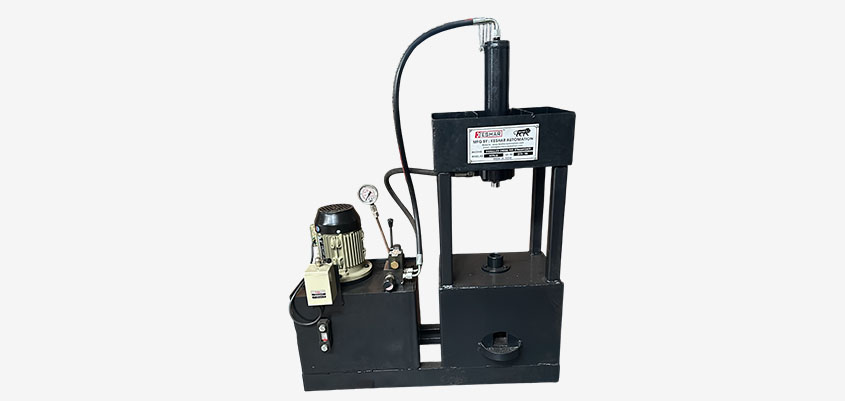

One of the most common problems in tape lineplant is bended pipe in winder section. So toOvercome this problem we are introducing Hydraulic cheese pipe straighter.This machine will help you to remove bendsfrom cheese pipe surface by hydraulic cylinder.
| Item | Hydraulic Cheese Pipe Straighter |
| Model | Hcps 35 |
| Type | Hydraulic Type |
| Description | |
| Hydraulic Cylinder | 01 No. Vertical Mounting main cylinder |
| Working Pressure | 60 Kg/cm2 |
| Structure | Heavy Gauge M.S. Plate & Channel, Angle |
| Machine Weight | 100 Kgs Approx |
| Cylinder Stroke | 300mm |
| Approach speed | 17 mm/sec. |
| Return speed | 26 mm/sec. |
| Appr. Time for 300mm travel | 18 sec. |
| Power Pack | 1hp, A/c motor, Crompton make |
| Oil Require | 27 Ltr (Grade 68 no.) At your Scope |
| Operation | By Hand Lever operated valve (Polyhydron make) |
| Pump type | Gear Pump, 3.4 LPM (Welex / Dowty Make) |
| Pipe Size | ID 35mm, OD 37mm, Length 218mm |
| Cylinder seals | Techlon(Italy) / Markel(Germany) |
| Dimension (L x B x H) | 950mm x 450mm x 1200mm |
