With Bag Gripper, Anilox Roller and A. C.Drive
PRINTING AREA 62 INCH, BAG FEED 82 INCH

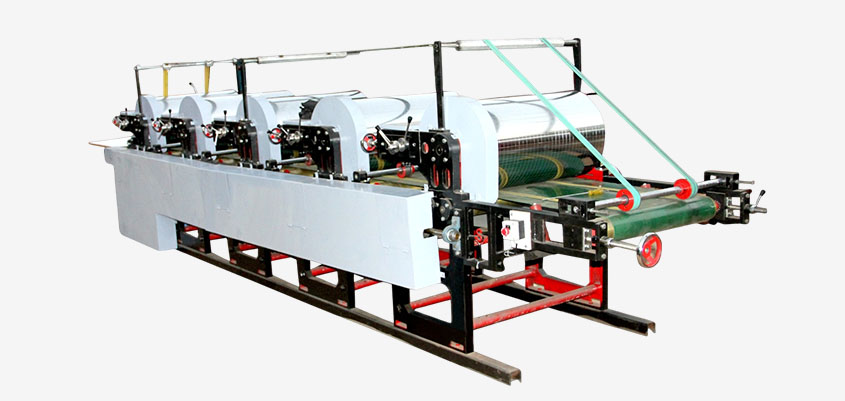

MULTI COLOUR & MULTI PURPOSE ROTARY FLEXOGRAPHIC PRINTING MACHINESUITABLE FOR PRINTINGMachine Is Robust Design with Cast Iron Machined Heavy Sidewalls, Frames Held Together byHeavy Cross Supports of Pipe.
Feeding Table Topped with Wooden and Formica Sheet Provide with Adjustable Edge Guide forPerfect Feeding.
Draw Rollers Actuated by Adjustable Cam for synchronizing With Rubber Stereo to Print Mat Exact Position of Bag There by Elimination Judgment of Operator.
All Rollers Made from Heavy Walled Seamless Steel Pipes Duly Machined Delivery. All Rollers AreGrinded and chrome plated SO NO MORE JUNK PROBLEM.
End Rollers adjustable For Tensioning of Conveyor Belt Endless Rubberized Canvas Belt AreUsed with Tension Arrangement.
Standard Make Branded 7.5H.P/AC/1440 RPM 440 V Cycles, THREE PHASE Electric MotorRespectively With A Suitable Worm Reduction Gearbox Coupled With Two Stepped Pulley ToObtain Speed Either 1420Piece/Hr.
Stainless Steel Ink Tray, So No More Junk Problem.
Machine Has Duly Assembled and Spray Paints With Hammer tone Color.
Registration Between Colors to The Extent of Plus Minus of 2MM Is Possible.Standardmake Gear Box for Reduction & Maintain Speed.
We Also Provide Single Phase Motor If Customer Hasn’t Provision of three phase powerconnection.
Maximum Size of fabric Width 60” x length 82” Can Print.
Machine Speed 20 Bag
Heavy Duty Main Drum and Structures
Anilox and Rubber rolls, ABB 7.5hp motor three phase
Spanner set,tracking belt, conveyor belt3mm
