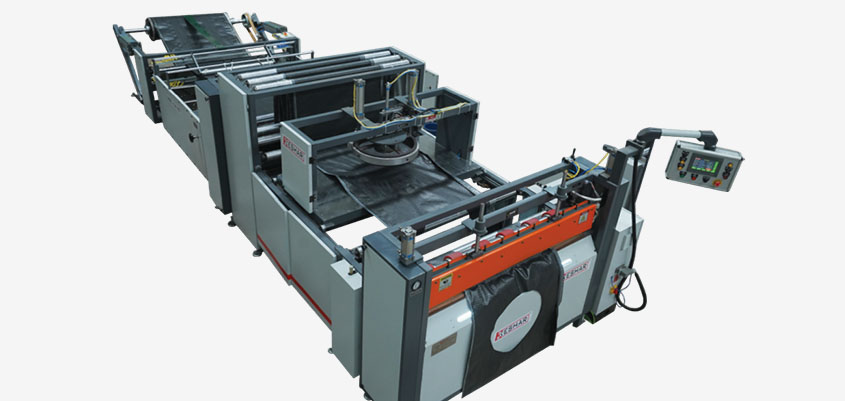

For cutting of PP/HDPE BELTS.
| Belt width range | 35-100 mm (6-4 belts) |
| Maximum diameters of belt roll | 800-1000 mm |
| Belt Cutting Length | 500 - 4800 mm |
| Production Speed (1 meter length) | 6* cuts/min |
| Cutting Accuracy | +/- 5 mm |
| Length x width x height | 580 x 135 x 135 cm |
| Servo Motor | 1.0 Kw - 3 nos Servo motors and servo drives |
| (Fuji Electric make) | |
| Minimum short leg | 600 mm |
| Maximum short leg | 1800 mm |
| Minimum long leg | 600 mm |
| Maximum long leg | 3500 mm |
| Marking | Auto marking system Ink mark with two place |
| Machine Control | PLC with HMI 7” complete programmer |
| Cutting Type | Hot cutting die with 3000 watt heater |
| Operating Panel | Taper Panel Display with HMI setting |
| Electrical main panel | Servo drive, PLC & set of switch gear |
| Fuji Electric make | |
| Air Pressure | 7 to 8 bar |
| Marking system | Stamp Ink marking |
| Man power | One Operator |
