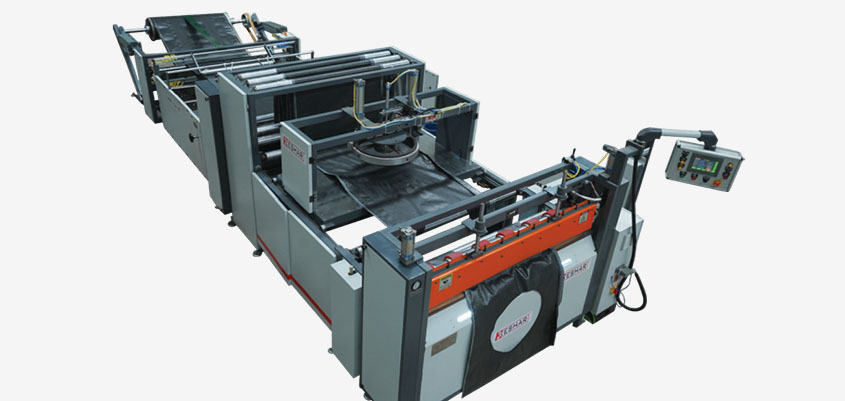

Our FCM 1400 and FCM 2200 are reliable and efficient machines designed to produce FIBC (Jumbo Bags) panels of preset cut length with possibilities of profile cuts customized to client requirements.
| Model | FCM 1400 | FCM 2200 |
|---|---|---|
| Width of Fabric (max.) | 1400 mm | 2200 mm |
| Fabric Cut Length (min.-max.) | 200-50000 mm | 200-50000 mm |
| Profile Cut | Spout-O, Cross-X | Optional |
| Production speed | 25 pcs./min (with spout)* 30 pcs./min (without spout)* |
28 pcs./min (without spout)* 24 pcs./min (with Spout)* |
| Diameter of Fabric roll (max.) |
1000 mm | 1200 mm |
|
Weights of fabric roll (max.) |
800 Kg. | 1000 Kg. |
| Cutting Accuracy | +/- 10 mm | +/- 10 mm |
| Tension Control | Dancing Roller | Dancing Roller |
| Machine Control |
PLC & Servo Control (Schneider/Fuji make) |
PLC & Servo Control (Schneider/Fuji make) |
| Air Pressure | 7-8 Bar | 7-8 Bar |
| Main Driving Motor |
2.0 Kw. Servo Motor (Schneider/Fuji make) |
3.0 Kw. Servo Motor (Schneider/Fuji make) |
| Heater for Cutting Knife | 5 Kw. (5000 Watt) | 8 Kw. (8000 Watt) |
| Dimension L x W x H | 22 x 7 x 6 Feet | 22 x 9 x 6 Feet |
| Spout Cut Dia | 200 to 500 mm | — |
| Total Power Consumption | 13.6 Kw. (18HP) |
13.6 Kw. (18HP) Without Spout Unit |
| Machine Weight | 2000 Kg Approx | 2500 Kg Approx |
*Depends on material used & GSM of the fabric.
