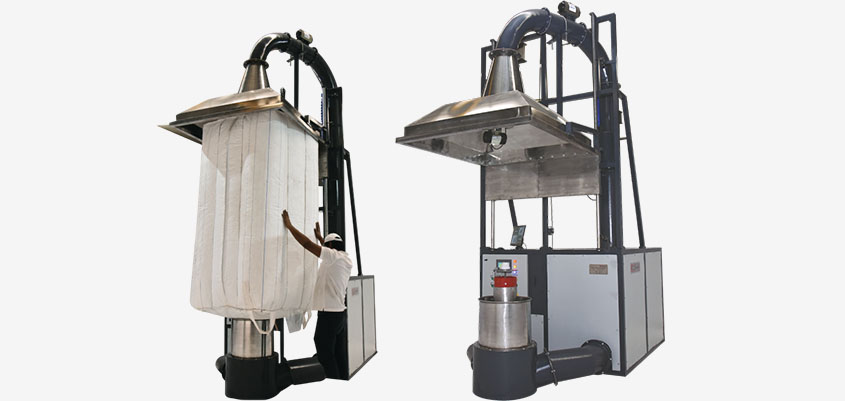

Our bag cleaning machine provides an ideal cleaning solution for fibc (jumbo bags) used for food and pharmaceutical applications. using pre-filtered air, the automated cleaning process of this machine ensures efficient removal of all loose contaminants during the cutting and sewing operations required to manufacture the FIBC,
The fabric gets electro statically charged.
These charge of the fabric regularly cause
The adhesion of also insects, human hair and even personal
objects of the workers are often found in
New manufactured fibc's (loose threads, foreign particles, etc. from inside the bags). our cleaning machine which we have developed allows for a controlled and scheduled inside cleaning of the FIBC's. the constructional shape of the cleaner ensures very easy handling and we set two hd camera and led display here you can see inside the bag and also static discharger for eliminate static.
The total operation is controlled by programmable logic controller of recent technology. the machine gives data's like total bag cleaned. the machine has got both automatic and manual mode of operations. the machine can be used to clean bag upto the size of 120cm x 120cm x 220cm.
| SR. NO. | ITEMS | SPECIFICATION |
|---|---|---|
| 01 | Length | 325 cm |
| 02 | Width | 255 cm (With Attached Air Filter) |
| 03 | Height | 390 cm at Close 585 cm at Full Open |
| 04 | Max. Bag Body Height | 220 cm |
| 05 | Top Hood Hoist | Elect, 1.5 HP Brake Motor, Motorized Lifting |
| 06 | Air Blower | 3000 CFM with 12.5 HP Motor |
| 07 | Inside Visible | 2 HD Camera Top and Bottom with LED Display |
| 08 | Air Filter | S3304 50 Micron Filter (Both Suction and Blow) |
| 09 | Top and Bottom Hood | Stainless Steel (202/304) |
| 10 | Rest of Body | M.S. with Powder Coating and Painting |
| 11 | Electrical Panel Controls | Star & Delta with 7" Color HMI with PLC |
| 12 | Air | 6 to 7 Bar |
| 13 | Control Valves | Butterfly Type Control Valve Controlled by Rotary Actuator |
| 14 | Total Power Consumption | 14 HP, 415 V, 50 Hz, 3 Phase With Zero Earthing |
| 15 | Required Man Power | Two Workers |
| 16 | Machine Weight | 1290 Kg. Approx |
