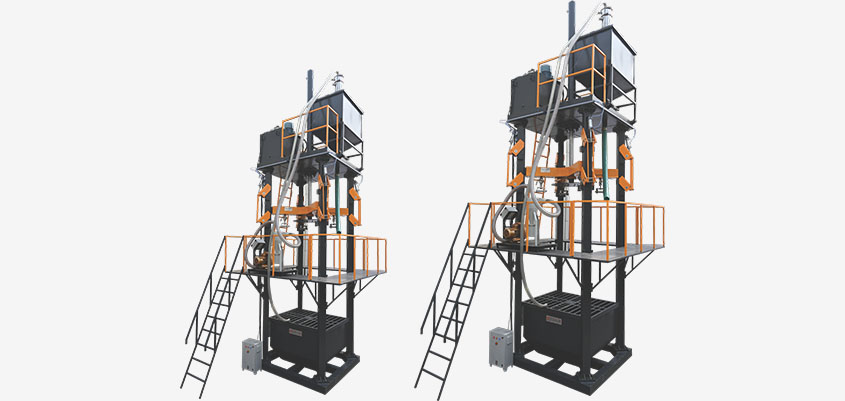

The device is capable of carrying out Top Lift Tests of FIBCs with single point & multiple point suspension according to all National & International Standards in an easy quick and accurate manner
| ITEMS | SPECIFICATION |
|---|---|
| Machine Max. Capacity | 30 Ton |
| Hydraulic Cylinder | 150 mm Bore 2300 mm Stroke |
| Power Pack | 7.5hp, 3 Ph, 50hz, 1440 Rpm, A/c Motor |
| Oil Tank Capacity | 400-450 Liters |
| Operating Pressure | Max. 170 Bar |
| Type | 4 Pillar Down And Up Stroke |
| Length | 200cm |
| Width | 200cm |
| Hight | 880cm |
| Daylight Gap | 300cm |
| Maximum Bag Height for Test | 220cm |
| Maximum Bag Width for Test | 120cm |
| Storage Tank Capacity (topside) | 700 Kg |
| Load Cell | 4 Nos 7.5 Ton Capacity Ip-65 Protection |
| Number of Hooks | 4 Loop And Attachment For 1 Loop 2 Loops |
| Height Adjustment | Hydraulic |
| Granules Filling | Auto Filling Bucket Conveyor Belt Elevator System (46 Kg./minute) |
| Air Supply | 7 to 8 bar |
| Total Power Required | 11 HP 3 Ph 440v With Zero Earthling (8Kw.) |
| Test Report | Auto Generated |
| Machine Control | Computer Control With PLC Program |
| Electrical Panel Board | Fully Automatic, PLC Based |
| 1 No. Web Camera | Photo Capture Automatically (before Test And After Test) |
| Optional | IP Camera (Mobile Camera) Supported |
| Machine Weight | 5250 Kg. |
Desktop Supply With This Machine
Types Of Bag Can Test In This Machine : 4 Loops I Two Loops I Single Loops I Tunnel Loop
