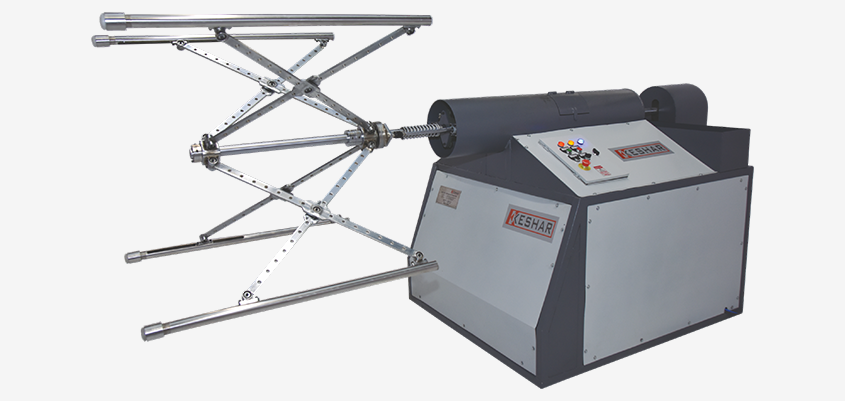

This is Machine is Designed for Glue the PE liner (It's called liner opener) for the big bag by hot melt glue system.
In this machines we can adjust liner size for from shape are square shape of the liner min 30cm to 120cm and body length we adjust up to 210cm as per requirements.
| SR.NO | ITEMS | SPECIFICATION |
|---|---|---|
| 01 | Opening Arms | SS 202 Gread with Extraction Arms Set, 250mm Range up to 2.1 Mtrs. |
| 02 | Length of Arms | 1 Mtrs Standard Fixed |
| 03 | Blowing System | 3HP High Pressure Suction and Blow |
| 04 | Rotation Controls | Manual Operating System |
| 05 | Air Pressure | 6 Bar |
| 06 | Operating | Electrical Panel |
| 07 | Power Required | 3HP, 3ph, 440V |
| 08 | Machine size (L X W X H) | 300 x 130 x 130 cm |
| 09 | Air Filter | Micro Filter Provided at incoming & Dust Collection Box Ss304,50Micorn Filter (Both Suction & Blow) |
| 10 | Machine Weight | 540 Kg. Approx |
